Custom Plenum Cable

NEC Article 725, 760, 800, CL2P, CL3P, CMP, FPLP, NPLFP

You can rest assured that your custom plenum cable will be tailor-made to your specifications. Our knowledge and experience, quality and testing standards, and flexible manufacturing capabilities provide a competitive advantage that is unique to General Wire Products:

  • Fast quote turn around time
  • Liberal minimum runs
  • Short lead times
  • Safety stock/JIT system

We can produce Belden, Alpha and other competitor equals with a wide range of options that help make installation more efficient:

  • Extruded stripe jackets
  • Custom print legends
  • Custom colors
  • Sequential footage standard certifications
  • * FEP Teflon and fluorocopolymer jackets

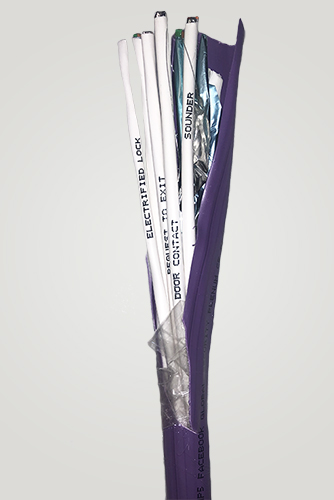

Custom Plenum Made in the US

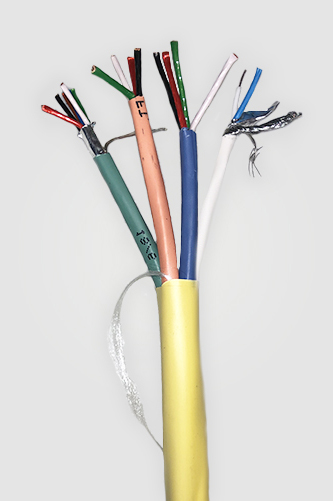

General Wire Plenum Cable Manufacturing, Worcester MA

Meeting Your Needs

Our design engineers are ready to work with an existing specification, an existing sample of cable, or help you design a cable based on your specific phyiscal, electrical and environmental needs.

General Wire can provide full regulatory compliance on all your custom plenum cable requirements. Our third party verified performance cable test lab will document and certify your cable test requirements. This combined with our liberal minimum run policy, allows us to provide the cables you want in the quantities you need.

Measured Electricals

Cables or components designed to support electrical requirements. Low Cap, Echelon, Lon Works, Arc-Net, Temperature Control, Cresnet, Category 5, 5E, 6, 6A and 7 UTP and STP

50 and 75 Ohm Coaxes, Serial Digital Coax, CCTV Coax, Precision Video, Aerospace Grade coax and triaxial cables, 50,78,100, 120 & 124 & 150 Ohm Controlled Impedance Twisted Pairs and Twinaxial Cables can all be incorporated into your unique cable design. As an ETL and UL verified Category Performance cable manufacturer, as well as NHB 5300.4(1c) and Mil-I-45208A house, we have the systems to manufacture high reliability measured electrical cables.

Harsh Environments

Expanded temperature range cables designed to maximize cable life in severe operating conditions, high temperature, Tefzel, FEP, Halar, PFA, MFA, Fluorocopolymer, and Hytrel jacketed cables rated @ 125, 135, 150, 200, and 260 degrees Celsius exceeding FAR Clauses 25.853 (a) and 25.869 (a) (4).

Secured Communications

Custom cables designed to eliminate RF/EMI issues with the Full Plenum Compliance can be manufactures to DOD/Telcordia standards, or your custom requirements. Contact the factory for assistance.

Composite Communications

Round cables with any number and type of components cabled together under a common jacket, incorporating any of the characteristics above, duplicating existing cables, or developing your ideas and requirements into a new application design, composite cable designs save space and termination costs by allowing you to put multiple types of components under one jacket.

Siamese Cables

We also offer customized Siamese or figure eight type cables. Components are pulled parallel, each with its own unique integral jacket connected by a thin web. This product eliminates duplicate matching, paralleling and cutting saving precious labor dollars. Consult factory for product options.

Full regulatory compliance on all of your custom requirements.

To fulfill our committment to the highest quality standards, we are ISO 9001:2015 certified. We are an approved supplier for the U.S. Department of Defense, and hold all industry standard certifications.

General Wire Certifications

Get Started Now

Our team of experts is ready to find solutions for all of your custom cable needs.
